Track Lighting System
Galex Maxi Led Track Lighting 45W
The Galex luminary offers state-of-the-art accent lighting in a sleek, modern design. Engineered with a specialized spun aluminum reflector and complemented by an anti-glare ring, the Galex ensures optimal light distribution while providing visual comfort. The lamp is ideal for any interior and will not distract unnecessary attention due to its small body size.
- Model Number
- 10210045
- Size
- Ø100*H212mm
- Power (W)
- 45W
- Light Source
- 1208
- Beam Angle
- 15°/24°/36°/60°
- Installation
- 3-phase track mounted
Product Overview
Galex Maxi Led Track Lighting 45W for Modern Commercial Applications
Galex Maxi Led Track Lighting 45W is a flexible and efficient lighting solution designed for commercial environments requiring adjustable illumination and precise beam control.
Our LED track lights combine advanced optical technology-aluminum reflector, optimized heat dissipation and reliable LED performance to create comfortable and high-quality lighting environments.
Designed for:
- Retail stores
- Fashion boutiques
- Shopping malls
- Hotels
- Restaurants
- Art galleries
- Showrooms
- Museums
We support both standard products and customized OEM/ODM development to meet different market and project requirements.
Key Features
- High brightness LED chip with stable performance
- Die casting aluminum housing with powder coating finished
- High efficiency>95% Miro silver reflector,designed specially for Led COB chips
- 350° horizontal rotation and 90° vertical adjustment
- High CRI 90+ / 95 optional for accurate color rendering
- Low glare design (UGR optimized)
- Multiple beam angle options (15° / 24° / 36° / 60°)
- Special RAL colours on request,RAL9016,RAL9006,RAL9005
- Energy-saving and long lifespan (50,000+ hours)
- Compatible with standard 3-circuit track system
Product Specifications
Item | Specification |
|---|---|
Luminaire type | Spot |
Application areas | Accent lighting |
Lumen category | 3620lm – 6750lm |
Light colour | 2700K, 3000K, 3500K, 4000K, Special colour on request |
CRI | Ra80 / Ra90+ |
Pan/tite range | 350° / 90° |
Protection rating | IP20 |
Beam angle | 15°, 24°, 36°, 60° |
Certificates | CE,CCC,SAA |
Life time | 50 000 hours (L90/B10) |
Warranty | 3 years / 50 000 hours |
Body | ADC 12 Die Casting Aluminium |
Body colour | Black RAL 9005, White RAL 9016, On request |
Optic | Spun aluminum reflector or MIRO-Silver® aluminum reflector |
Supply unit | Integrated LED driver |
Lighting technology | LED COB |
Input voltage | 230 V, 50 Hz |
Power factor | 0.95 |
Cooling | Passive |
Mounting | 2 Circuit / 3 Circuit / Magnetic Track |

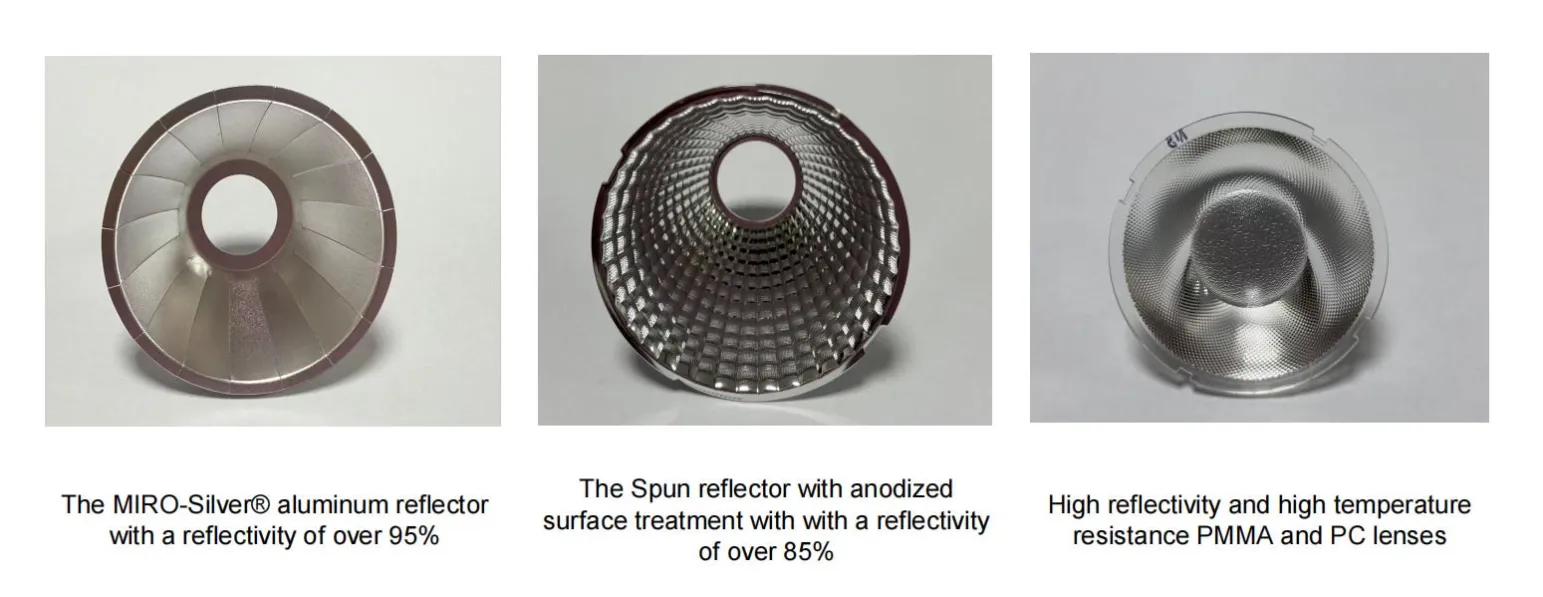

Optical Options
This Galex series track comes with three different optical options, allowing you to choose the right optics based on your project requirements and budget, thus achieving unexpected results.
Electrical equipment
Premium LED Components & Reliable Power Solutions
The performance of a lighting fixture depends heavily on the quality of its LED components and power systems. We partner with trusted global brands for LED chips, modules, and drivers to guarantee excellent efficiency, thermal stability, and operational safety. Every component is carefully selected to meet the requirements of commercial lighting applications.
Applications
LED Track Lighting Applications
Retail Lighting
Create focused and attractive product displays for:
- Fashion stores
- Brand shops
- Commercial spaces
Hospitality Lighting
Provide comfortable lighting for:
- Hotels
- Restaurants
- Lounges
Architectural Lighting
Suitable for:
- Galleries
- Museums
- Showrooms
Why Choose Us
Your Reliable LED Track Lighting Partner
Commercial Lighting Expertise
Focused on professional commercial lighting solutions.
Engineering Support
From optical design to thermal management.
Flexible OEM/ODM Capability
Support:
- Lighting brands
- Importers
- Distributors
- Project contractors
Quality Assurance
Products can be developed according to:
- CE
- RoHS
- ERP
- International market requirements
FAQ
What is LED Track Lighting used for?
LED track lighting is mainly used in commercial spaces where flexible and directional lighting is required, such as retail stores, hotels, galleries and showrooms.
How to choose the right beam angle for LED track lights?
Narrow beam angles are suitable for accent lighting, while wider beams are better for general illumination.
Can LED track lighting be customized?
Yes. We provide OEM/ODM customization including power, optics, housing design, color finishing and branding.
What is the difference between lens and reflector track lights?
Lens solutions provide precise beam control, while reflectors create softer and more comfortable illumination.
