LED Track Lights
Galex LED Track Light 45W
45W LED track spotlight as the bigger size model of galex family,Ideal for commercial spaces such as shopping malls, fashion stores, and exhibition halls, providing focused accent lighting with energy efficiency and long-lasting performance.
- Model Number
- 10210045
- Size
- Ø100*H212mm
- Power (W)
- 45W
- Light Source
- 038/1830/V18
- Beam Angle
- 15°/24°/36°/60°
- Installation
- 3-phase track mounted
Product Overview
The LED Track Light is a high-performance commercial lighting solution designed for flexible and precise illumination in retail, showroom, and architectural spaces.
With its adjustable beam direction and high-lumen output, it allows lighting designers to highlight key products and create layered lighting effects in modern interiors.
Key Features
- High brightness LED chip with stable performance
- Die casting aluminum housing with powder coating finished
- High efficiency>95% Miro silver reflector,designed specially for Led COB chips
- 350° horizontal rotation and 90° vertical adjustment
- High CRI 90+ / 95 optional for accurate color rendering
- Low glare design (UGR optimized)
- Multiple beam angle options (15° / 24° / 36° / 60°)
- Special RAL colours on request,RAL9016,RAL9006,RAL9005
- Energy-saving and long lifespan (50,000+ hours)
- Compatible with standard 3-circuit track system
Technical Specifications
Model No | 10210045 |
|---|---|
Housing materials | ADC12 Die casting aluminum |
Size | Ø100*H212mm |
Kelvin | 2700K,3000K,3500K,4000K |
CRI | CRI>80,CRI>90,CRI>97 |
Luminous efficiency | 120-150lm/W @90 |
Beam angle | 15°/24°/36°/60° |
Adjustable | 350° horizontal rotation and 90° vertical adjustment |
Wattage | 45W |
Voltage | AC220-240V |
Dimming | DALI, TRIAC, 0/1-10V, DMX, RF, ZigBee |
Driver | Philips,Osram,Tridonic,etc |
Track adapter | 1/3 phase universal adapter,Global,Powergear,unipro etc |
Certificates | ENEC TUV GS, CE, CB |
Technical Drawing
Applications
LED Track Lights are widely used in commercial and architectural lighting projects:
- Retail stores & shopping malls
- Clothing & fashion boutiques
- Jewelry stores
- Supermarkets
- Exhibition halls & showrooms
- Art galleries
- Hotels and reception areas
Installation
The track light is designed for easy installation on standard rail systems.
• Compatible with 3-circuit track rail
• Tool-free installation and repositioning
• Flexible adjustment after installation
Custom Options
We provide OEM & ODM customization for project requirements:
- Wattage customization
- Beam angle adjustment
- Color temperature options
- Housing color (black / white / custom)
- Logo printing for brand projects

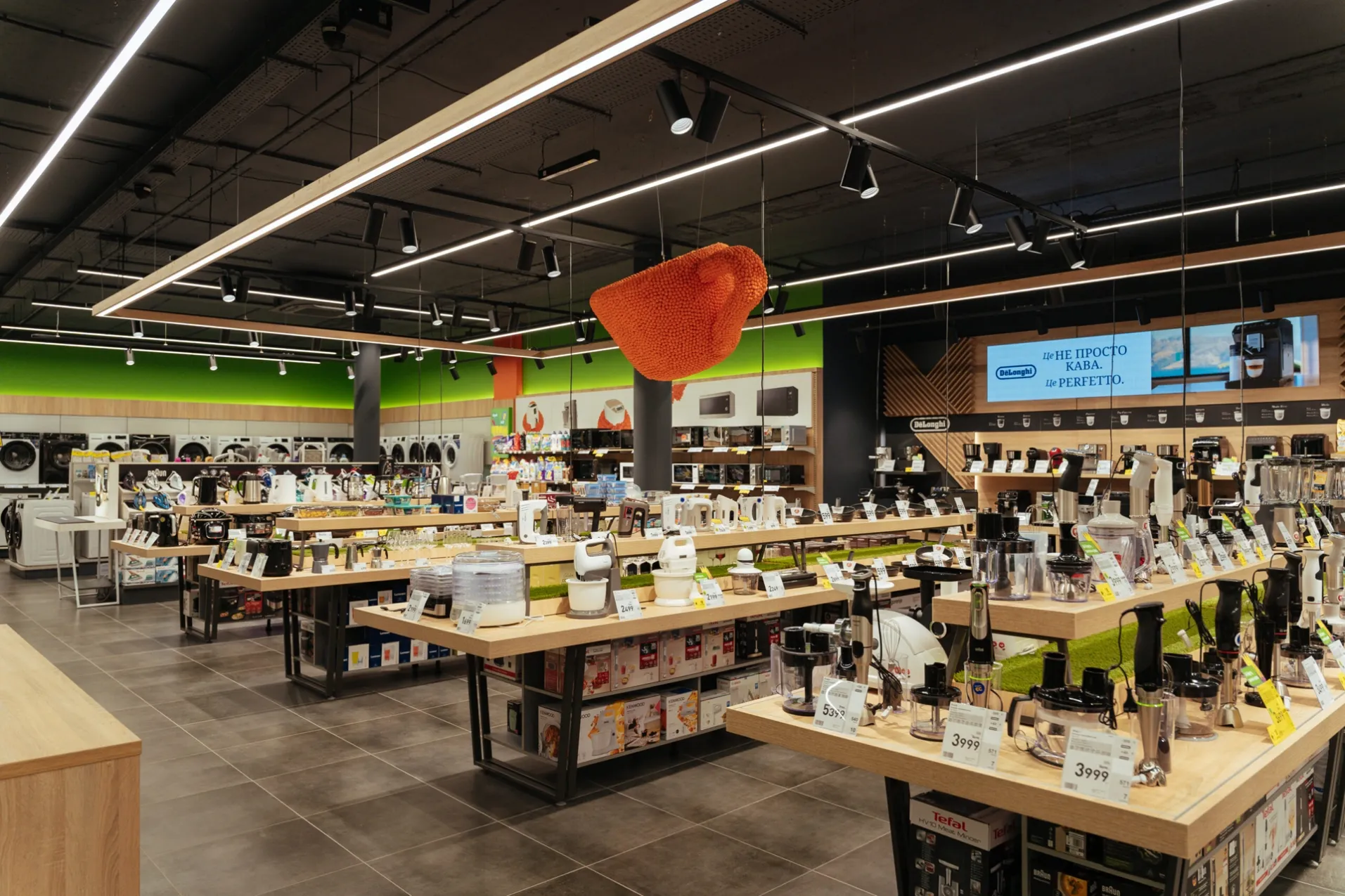

Project Applications
Call to Action
Looking for a reliable LED Track Light supplier for your project?
👉 Contact ELYCEN LIGHTING for catalog, pricing, and lighting design support.
