Recessed Lighting
Ellen Twin
Double head square adjustable LED spotlight with full die-cast aluminum housing, high-efficiency aluminum reflector with fourn beam selection, 350° rotation and 25° tilt adjustment. Designed for retail stores, hotels, galleries and architectural lighting projects.
- Model Number
- 30124527
- Size
- L245*W130*H98mm
- Power (W)
- 2*27W
- Cutout Size
- L227*W117mm

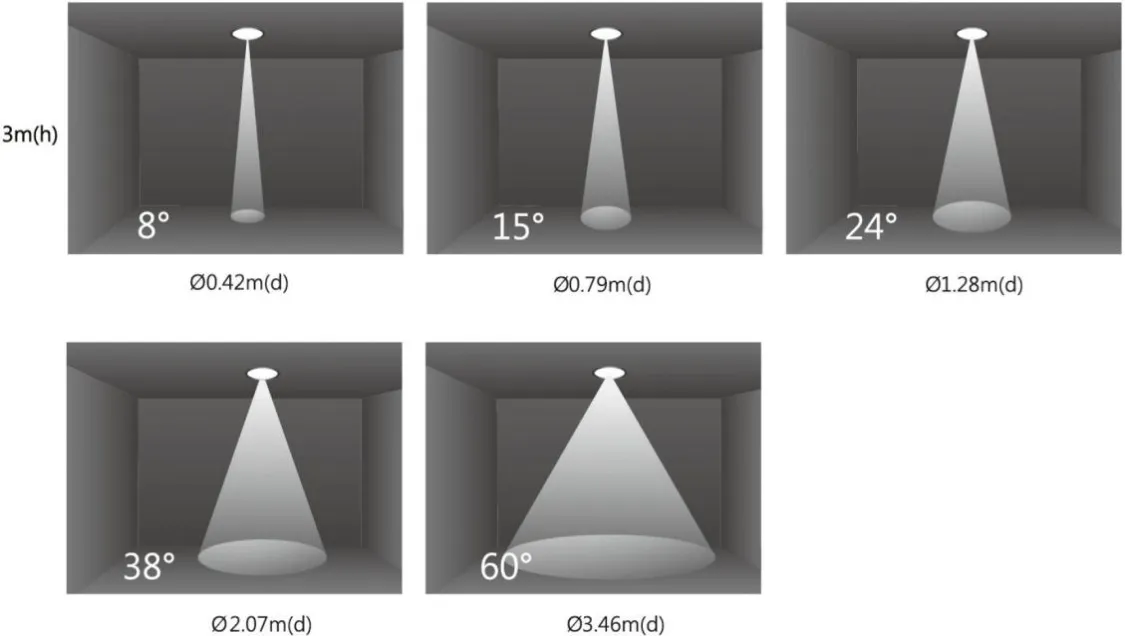

- Beam Angle
- 15°/24°/36°/60°
- Installation
- Ceiling Recessed
Product Overview
Double Head Square Adjustable Recessed LED Spotlight with Flexible Beam Control
Designed for professional commercial lighting applications, this double head square recessed LED spotlight combines modern architectural aesthetics with advanced thermal and optical performance. The dual-head design provides independent lighting adjustment, allowing users to create flexible and precise illumination for different areas within the same space.
The fixture features a full die-cast aluminum housing, providing excellent heat dissipation and ensuring stable operation during long working hours. The optimized aluminum structure effectively reduces heat accumulation, helping extend LED lifespan and maintain reliable lighting performance.
Equipped with high-efficiency aluminum reflectors, each light head delivers accurate beam control, uniform light distribution and excellent optical efficiency. The premium reflector material offers strong heat resistance and long-term optical stability, ensuring consistent lighting quality throughout the product lifetime.
With 350° horizontal rotation and 25° vertical tilt adjustment, each spotlight head can be independently positioned to direct light exactly where it is needed, making it ideal for product displays, wall washing and accent lighting applications.
Key Features
Double Head Adjustable Lighting Design
- Dual light source structure for wider lighting coverage
- Independent beam direction adjustment
- Suitable for highlighting multiple objects or areas
- Flexible lighting layout for commercial spaces
Full Die-Cast Aluminum Housing
- High-strength aluminum construction
- Excellent thermal management performance
- Reduces LED heat accumulation
- Ensures long-term reliability
Precision Aluminum Reflector
- High-efficiency optical reflector
- Accurate beam angle control
- Better light output and uniformity
- High-temperature resistant for long lifespan
Flexible Direction Adjustment
- 350° rotation adjustment
- 25° tilt adjustment
- Precise spotlight positioning
- Supports changing display requirements
Product Specifications
Item | Specification |
|---|---|
Lumen category | 4400lm – 6400lm |
Light colour | 2700K, 3000K, 3500K, 4000K, Special colour on request |
CRI | Ra80 / Ra90+ |
Rotation/tite range | 350° / 25° |
Protection rating | IP20 |
Beam angle | 15°, 24°, 36°, 60° |
Certificates | CE,CCC,SAA |
Life time | 50 000 hours (L90/B10) |
Warranty | 3 years / 50 000 hours |
Body | ADC 12 Die casting aluminium |
Body colour | Black RAL 9005, White RAL 9016, On request |
Optic | Spun aluminum reflector or MIRO-Silver® aluminum reflector |
Supply unit | Integrated LED driver |
Lighting technology | LED COB |
Input voltage | 230 V, 50 Hz |
Power factor | 0.95 |
Cooling | Passive |
Mounting | Ceiling recessed mounted |
Lighting Performance
Professional Accent Lighting with Precise Beam Control
The optimized optical system provides focused and comfortable illumination, helping enhance product visibility and create attractive visual experiences. The dual adjustable heads offer greater flexibility for accent lighting, allowing designers to highlight merchandise, architectural elements and interior details.
Electrical equipment
Premium LED Components & Reliable Power Solutions
The performance of a lighting fixture depends heavily on the quality of its LED components and power systems. We partner with trusted global brands for LED chips, modules, and drivers to guarantee excellent efficiency, thermal stability, and operational safety. Every component is carefully selected to meet the requirements of commercial lighting applications.
Applications
Designed For Various Commercial Applications
Retail Stores
Highlight products and improve customer experience.
Shopping Malls
Provide flexible lighting solutions for different spaces.
Showrooms
Create professional product display environments.
Hospitality Spaces
Support comfortable and attractive lighting atmosphere.
FAQ
Frequently Asked Questions
Q1. Can you provide OEM and ODM services?
Yes. We support customized product development including design, structure, optics and specifications.
Q2. Can I request samples before bulk production?
Yes. Prototype samples can be developed for testing and approval.
Q3. What applications are suitable for this product?
This product is suitable for retail stores, commercial spaces, hotels, showrooms and architectural projects.
Q4. What customization options are available?
We provide customized housing, power, optics, installation methods and packaging solutions.
