Ellen Adjustable COB LED Gimbal Downlight
Adjustable COB LED gimbal downlight with precision beam control, high CRI, and low glare. Ideal for retail, galleries, hotels, offices, and commercial lighting applications.
- Model Number
- 31012625
- Size
- Ø126*H98mm
- Power (W)
- 25W
- Light Source
- 1204/1208
- Cutout Size
- Ø115
- Beam Angle
- 15°/24°/36°/60°
- Installation
- Recessed Ceiling Mounted
Product Overview
Deep Recessed COB LED Downlight
Professional Anti-Glare Commercial Lighting Solution
Designed for modern commercial interiors, the Deep Recessed COB LED Downlight delivers exceptional visual comfort, high luminous efficiency, and elegant architectural aesthetics. Featuring a deep reflector and precision optical lens, it effectively minimizes glare while providing uniform, focused illumination.
Ideal for retail stores, hotels, offices, museums, galleries, and luxury residential spaces, this recessed downlight enhances both functionality and ambiance.
Key Features
- Premium COB LED chips deliver stable brightness, excellent energy efficiency, and long operational life while reducing maintenance costs.
- Die-cast aluminum construction provides excellent heat dissipation, ensuring consistent performance and longer LED lifespan.
- The deeply recessed reflector reduces direct glare, providing comfortable lighting with improved visual comfort for customers and employees.
- High CRI 90+ / 95 optional for accurate color rendering
- Low glare design (UGR optimized)
- Available in various beam angles to meet different lighting requirements, from accent lighting to general illumination.
- Special RAL colours on request,RAL9016,RAL9006,RAL9005
- Energy-saving and long lifespan (50,000+ hours)
- Suitable for recessed ceiling installation in various commercial environments with different ceiling materials.
Technical Specifications
Model No | 31012625 |
|---|---|
Housing materials | ADC12 Die casting aluminum |
Size | Ø126*H98mm |
Kelvin | 2700K,3000K,3500K,4000K |
CRI | ≥80 / ≥90 / ≥95 Optional |
Luminous efficiency | 90-130lm/W @90 |
Beam angle | 15°/24°/36°/60° |
Adjustable | 350° horizontal rotation and 25° vertical adjustment |
Wattage | 25W |
Voltage | AC220-240V / AC100-277V Optional |
Dimming | Triac / 0-10V / DALI Optional |
Driver | Built-in / External Driver Optional Philips,Osram,Tridonic,etc |
Cutout size | Ø115mm |
Certificates | ENEC TUV GS, CE, CB |

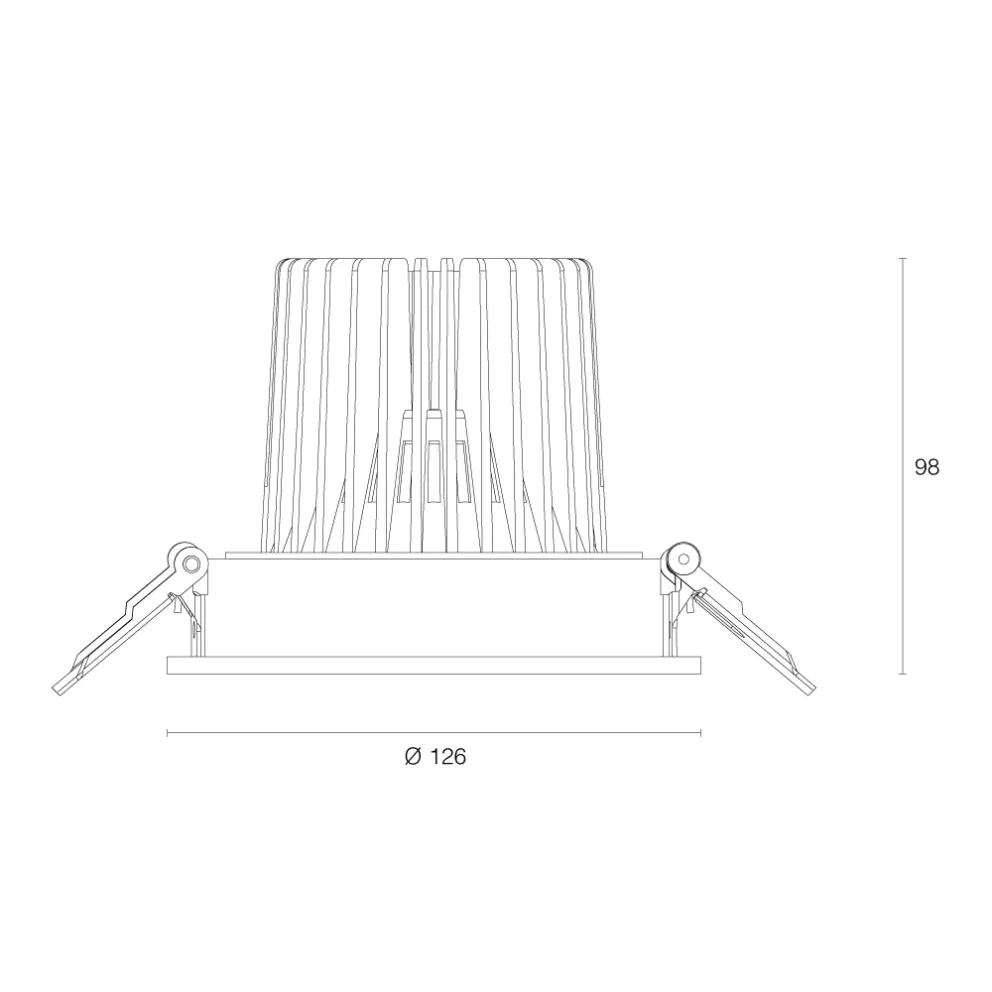

Technical Drawing
Applications
The adjustable recessed LED downlight is widely used in:
Retail Lighting
Create focused illumination for:
- Fashion stores
- Jewelry shops
- Supermarkets
- Brand showrooms
Hospitality Lighting
Suitable for:
- Hotels
- Restaurants
- Cafes
- Bars
- Lobbies
Commercial Office Lighting
Provides comfortable directional lighting for:
- Meeting rooms
- Reception areas
- Workspaces
Architectural Lighting
Perfect for:
- Galleries
- Museums
- Exhibition halls
- Luxury interiors
Installation
Flexible Installation
Suitable for recessed ceiling installation in various commercial environments with different ceiling materials.
Custom Options
We provide OEM & ODM customization for project requirements:
- Wattage customization
- Beam angle adjustment
- Color temperature options
- Housing color (black / white / custom)
- Logo printing for brand projects
Project Applications
Why Choose ELYCEN Lighting?
Factory Direct Supply
With years of experience in commercial lighting manufacturing, ELYCEN provides reliable OEM and ODM solutions for global distributors, contractors, architects, and lighting brands.
Strict Quality Control
Every fixture undergoes comprehensive testing, including:
- Incoming Material Inspection
- LED Performance Test
- Aging Test
- Driver Inspection
- Electrical Safety Test
- Final Appearance Inspection
- Packaging Verification
OEM & ODM Service
We support customized:
- Power
- Size
- Finish
- Beam Angle
- Driver Brand
- Color Temperature
- Packaging Design
- Private Label Branding
Frequently Asked Questions
Can the beam angle be customized?
Yes. We offer multiple beam angles including 15°, 24°, 36°, and 60° to suit different lighting applications.
Is dimming available?
Yes. Optional dimming solutions include Triac, 0-10V, and DALI.
What is the warranty?
Standard warranty is 3–5 years, depending on the selected driver and project requirements.
Can you provide OEM service?
Absolutely. We offer OEM and ODM manufacturing, including customized logos, packaging, housing colors, specifications, and product labeling.
Request a Quote
Looking for a reliable commercial lighting manufacturer?
Contact ELYCEN Lighting today for pricing, technical support, product catalogs, samples, and customized lighting solutions for your next commercial project.
